CALISE

Calise is a Class A analog headphone amplifier designed to meet the demands of studios and audiophiles.

The electronic circuit philosophy is identical to that of the other products in the ADS range: oversized, silent power supplies, high-quality components and an ultra-discrete, short signal transport and amplification design for optimum performance and fidelity.



Calise's power allows the use of all types of headphones, especially those with high impedance.

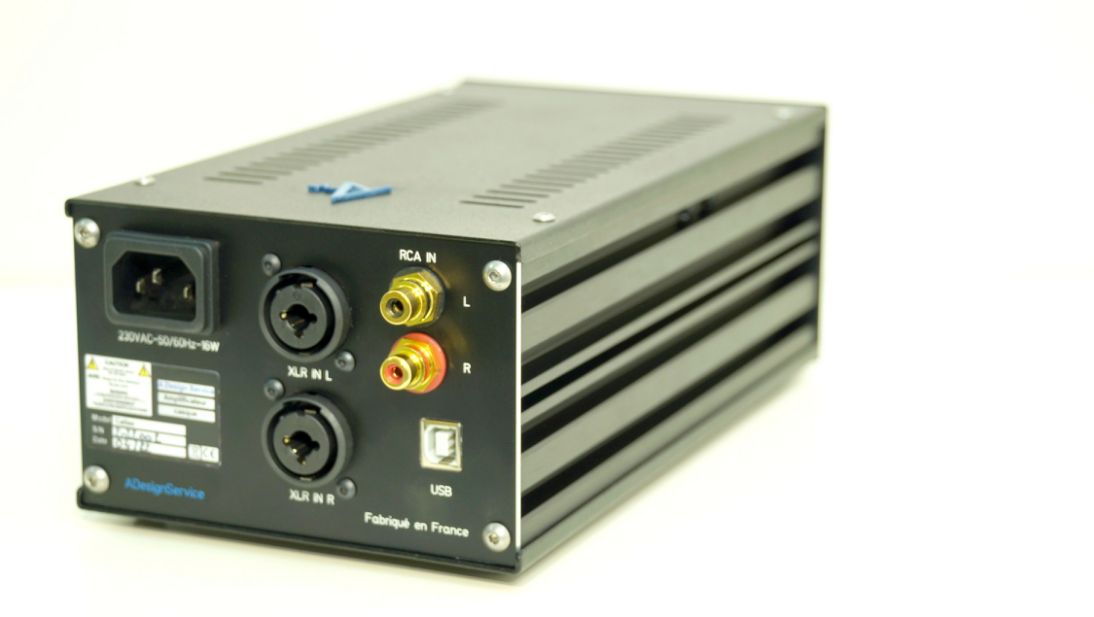

Connectors include XLR, jack 6.35 and RCA inputs for connecting all analog sources, and a USB type B port for audio sources from a computer.

The USB interface is managed by an ESS Sabre 24 bit / 96KHz DAC converter.

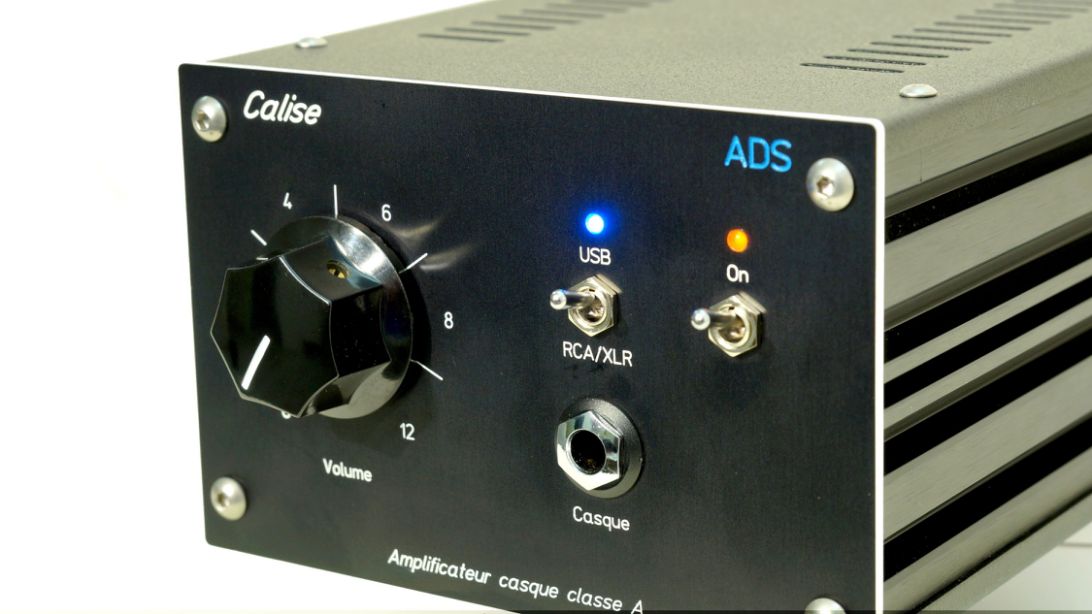

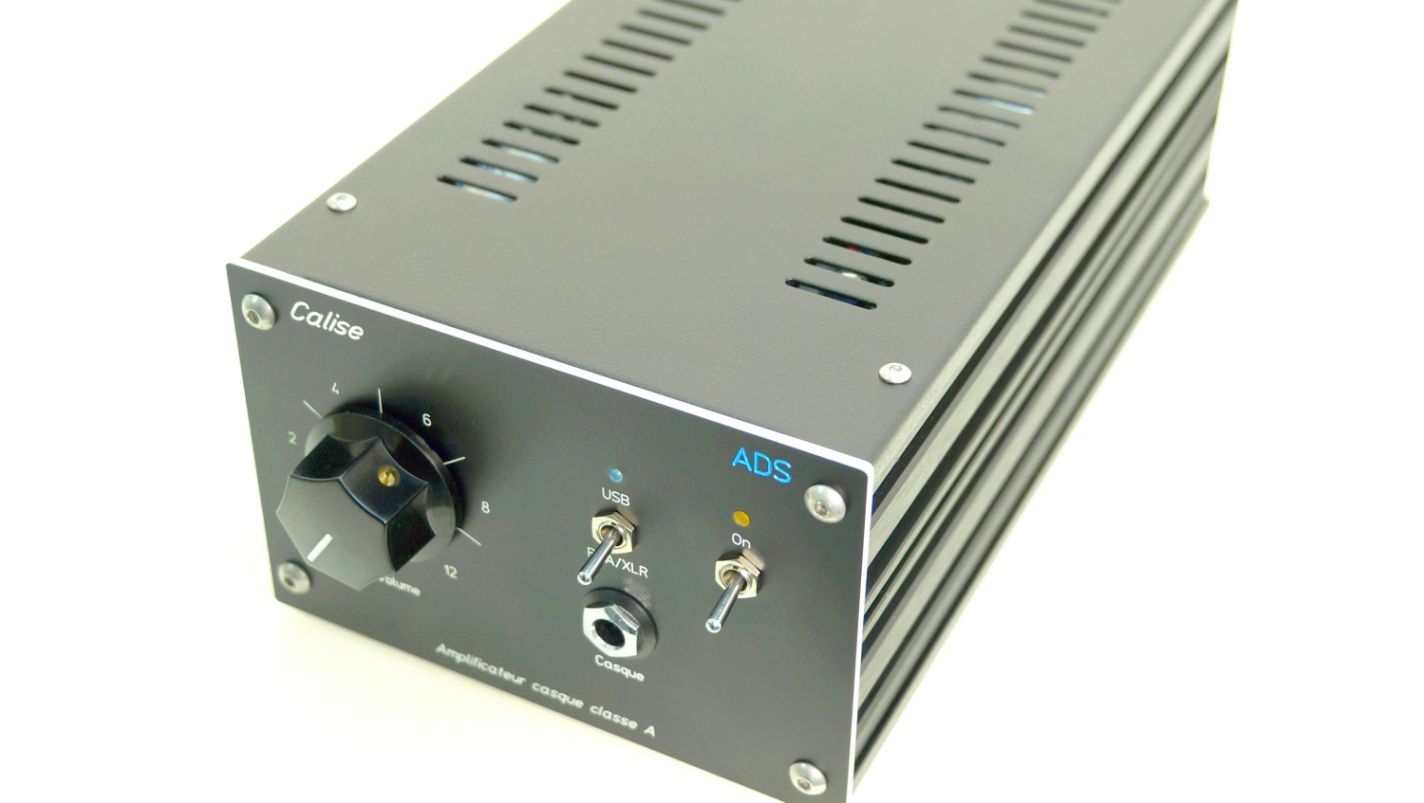

On the front panel, the Calise amplifier features a power switch and analog or USB input selection, a 6.35 jack connector for headphones and a volume control.

CALISE data sheet

Type

Power

Bandwidth

Power supply

Power consumption

Inputs

Outputs

Weight

Dimensions


Chassis

Headphone amplifier

1000 mW into 33 Ohms

10Hz - 20KHz ( -0.2dB)

30W

16W

RCA - XLR/Jack - USB (typeB)

6.35 stereo jack

2Kgs

80x124x230

Steel and aluminum face

Recommended retail price

820 €
