ELIA EXCLUSIVE

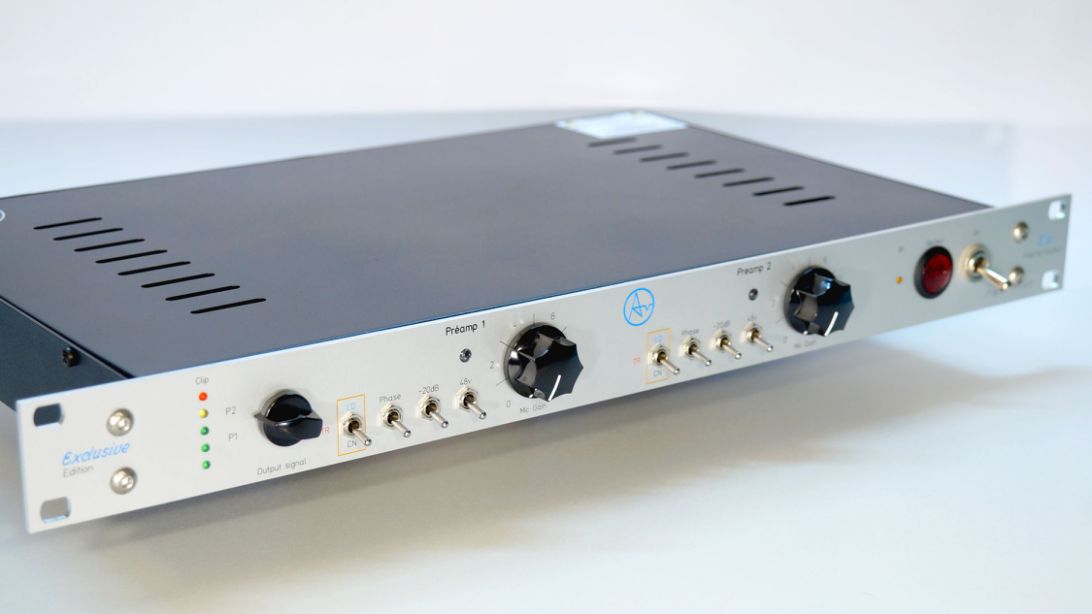

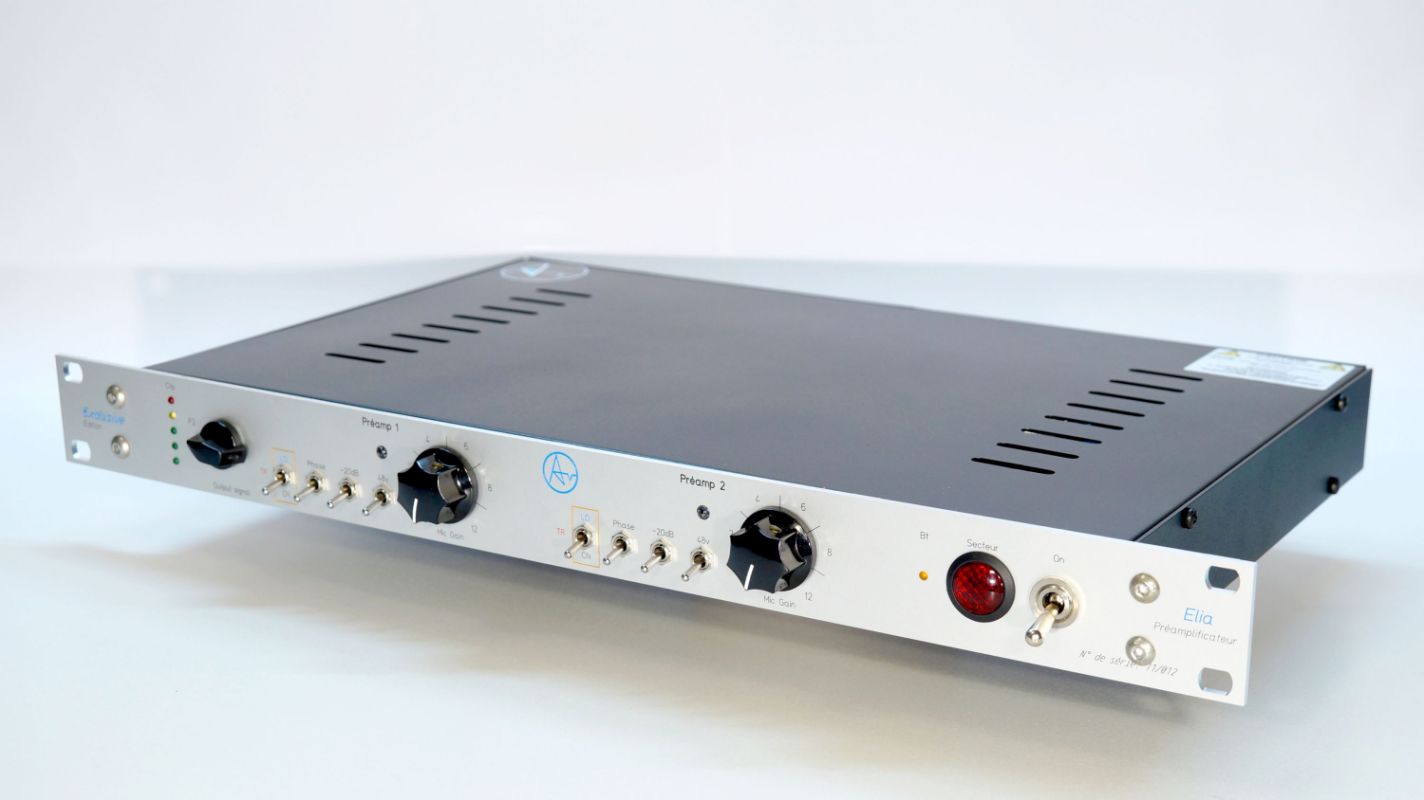

Elia Exclusive Edition is a high-quality 2-channel microphone preamplifier.

The electronic circuits used, which feature a very wide frequency response with ultra-fast transient response, are identical to those developed by ADS on other versions of ELIA preamplifiers.

Through the choice of materials and the care taken in design, ADS ensures the quality and authenticity of its preamplifiers.

The difference with the Elia Exclusive Edition preamplifier is that you can choose between two high-end, low-noise transformers on each channel.

The CN mode (Carnhill audio input transformer), tuned to the ELIA circuit, brings finesse, precision and dynamics.

The LD mode (Lundahl audio input transformer), tuned to the ELIA circuit, provides roundness and depth.

ELIA Exclusive data sheet

2 channels
100% discrete analog circuits
Carnhill - Lundahl transformers

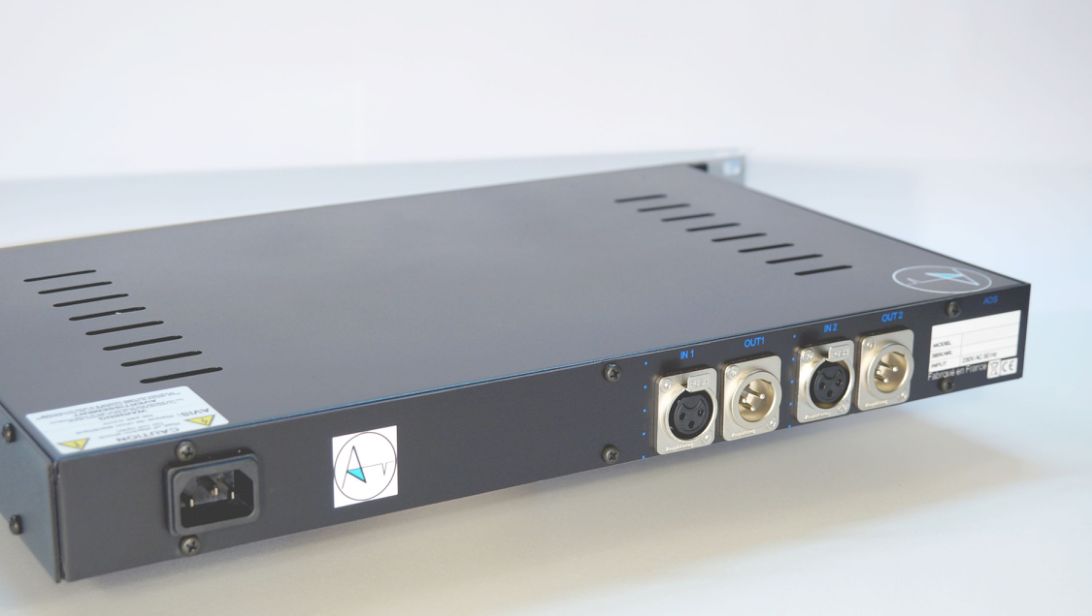

2 microphone inputs with XLR connectors
2 XLR balanced outputs
48-volt phantom powering, independent and switchable per channel
20 dB attenuator per channel
Phase inversion per channel
Lundahl/Carnhill transformer switching
Gain control ( 10 to 65dB)
Output level display via 5-LED meters
Delta between channels: 0 dB
Bandwidth 10Hz to 100kHz
Distortion: (1 Khz 2dBu) 0.04
Dimensions 250x44.5x483mm (1U)
Steel chassis
Engraved, anodized aluminum front panel
Internal power supply AC 220-240V / 50-60Hz
Power consumption 20W
Standard IEC power cable
Hand-made in France
