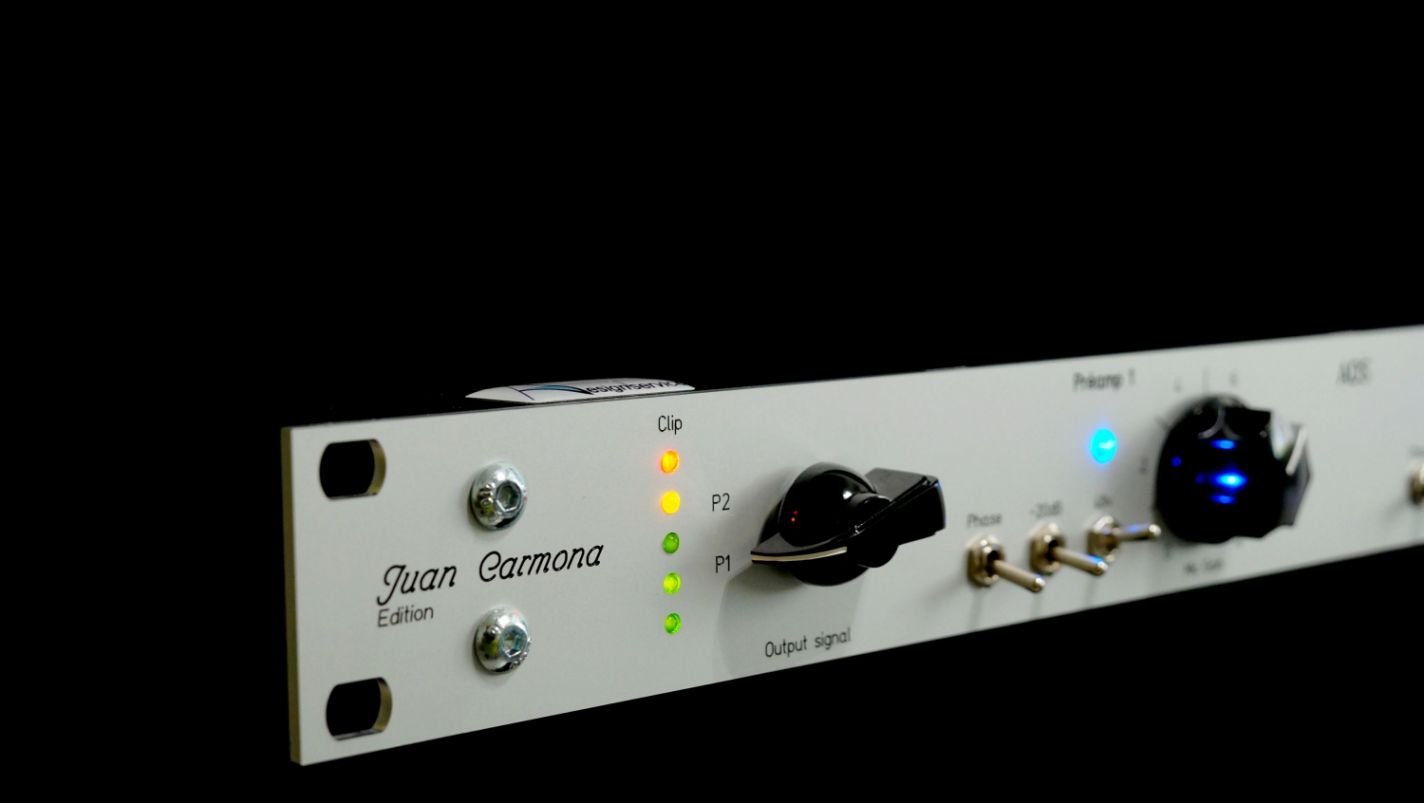

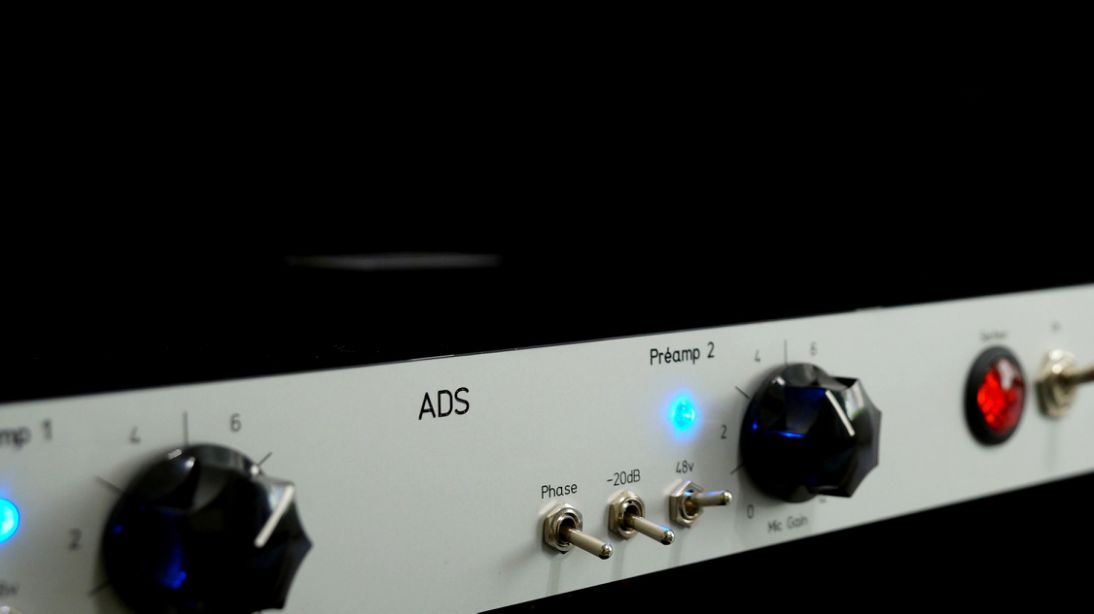

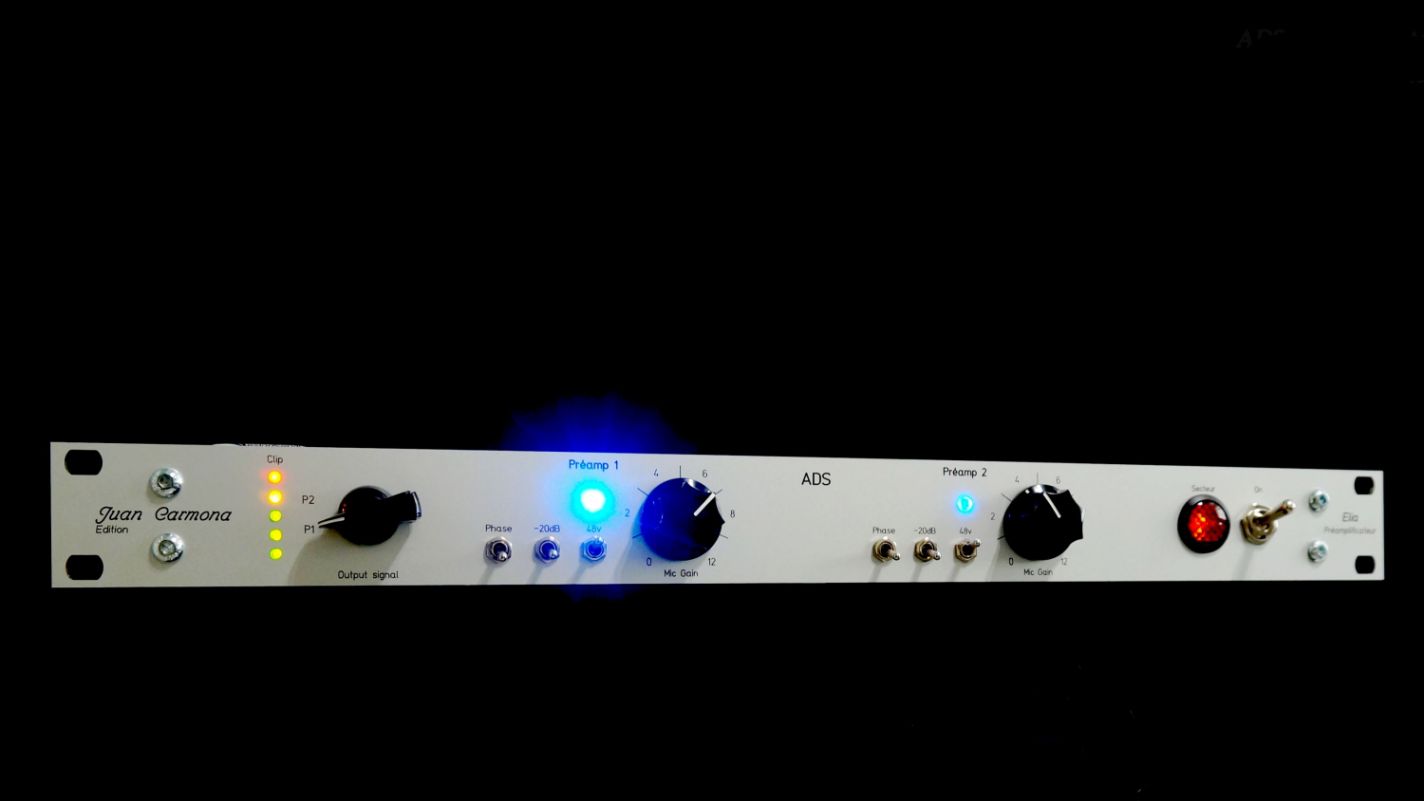

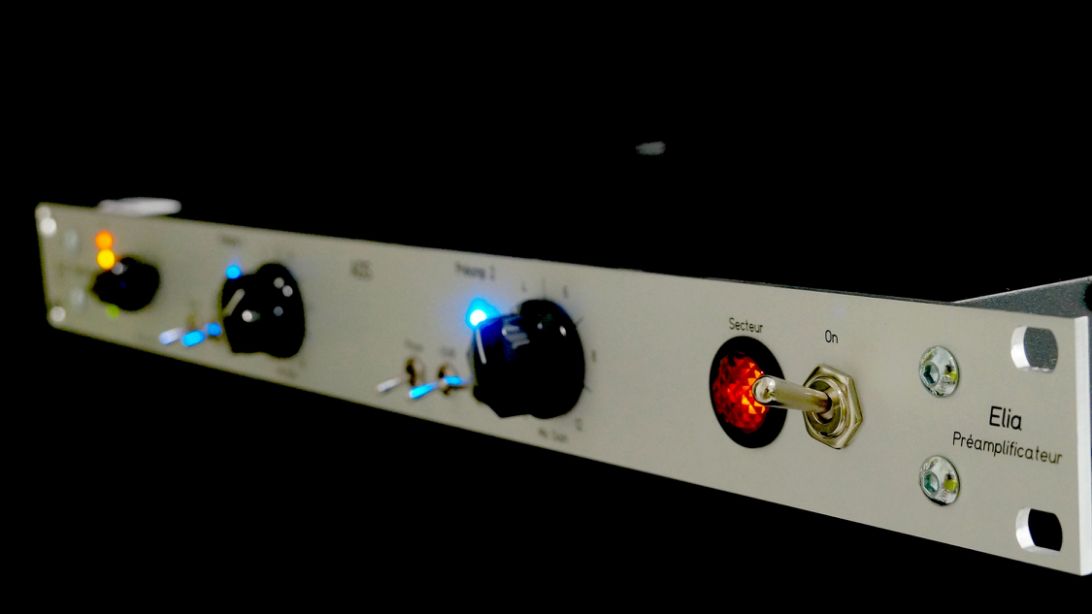

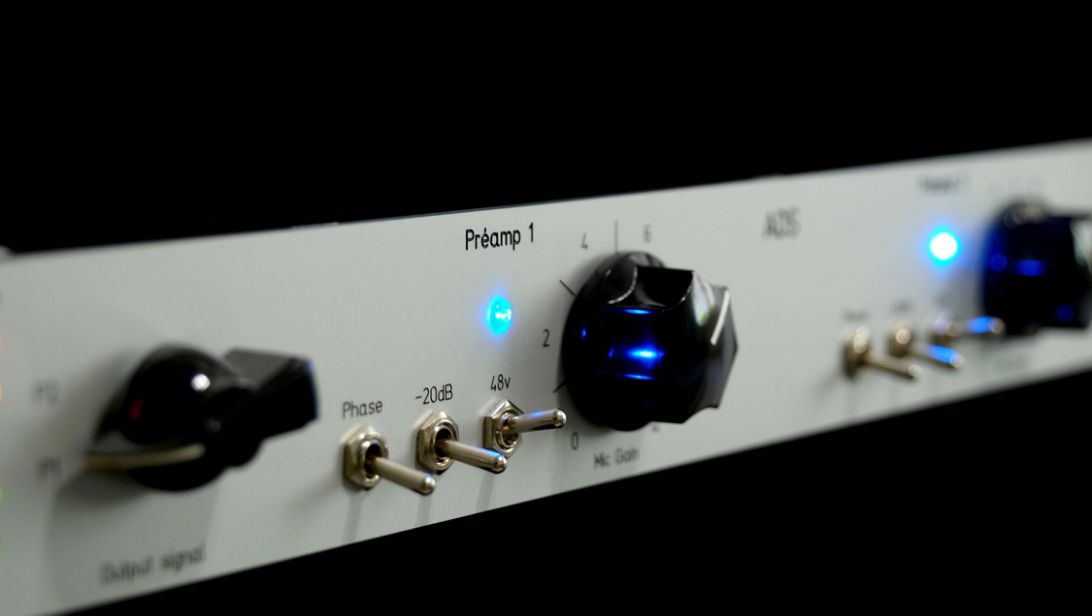

ELIAJUAN CARMONA

The ELIA Juan Carmona edition preamplifier features two separate microphone preamplifier circuits developed especially for one of flamenco's finest guitarists and composers: Juan Carmona.

It offers extremely faithful dynamics, sensitivity and sound reproduction.

As with ELIA, the design is entirely handmade, based on the principle of "in-air" wiring, eliminating the parasitic capacitive phenomena that impair the sound signal. Each model is unique.

Through the choice of materials and the care taken in design, ADS ensures the quality and authenticity of its pre-amplifiers.

ELIA Exclusive data sheet

2 channels
100% discrete analog circuits
Carnhill transformers
2 microphone inputs with XLR connectors
2 XLR outputs
48-volt phantom power per channel with blue LED indicator
20 dB attenuator per channel
Phase inversion per channel
Gain control ( 10 to 60dB)
5-LED Vu-meter output level display (-20 to 3 dB VU)
Bandwidth 20Hz to 100kHz
Distortion Input impedance 1.6Kohms
1U rack format
Dimensions 250x44.5x483mm
Steel chassis
Anodized aluminum front panel
Internal power supply AC 220-240V / 50-60Hz
Power consumption 20W max
Hand-made in France
