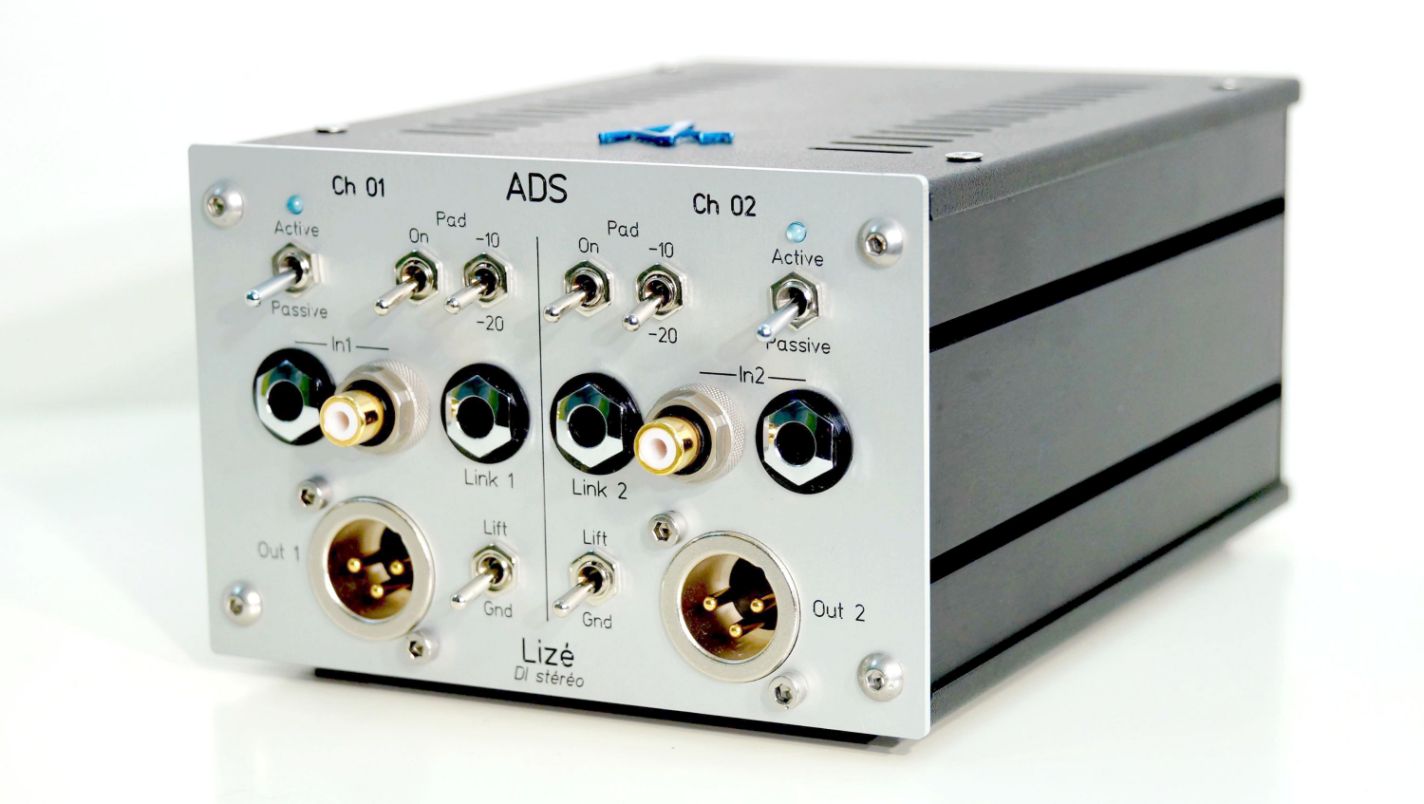

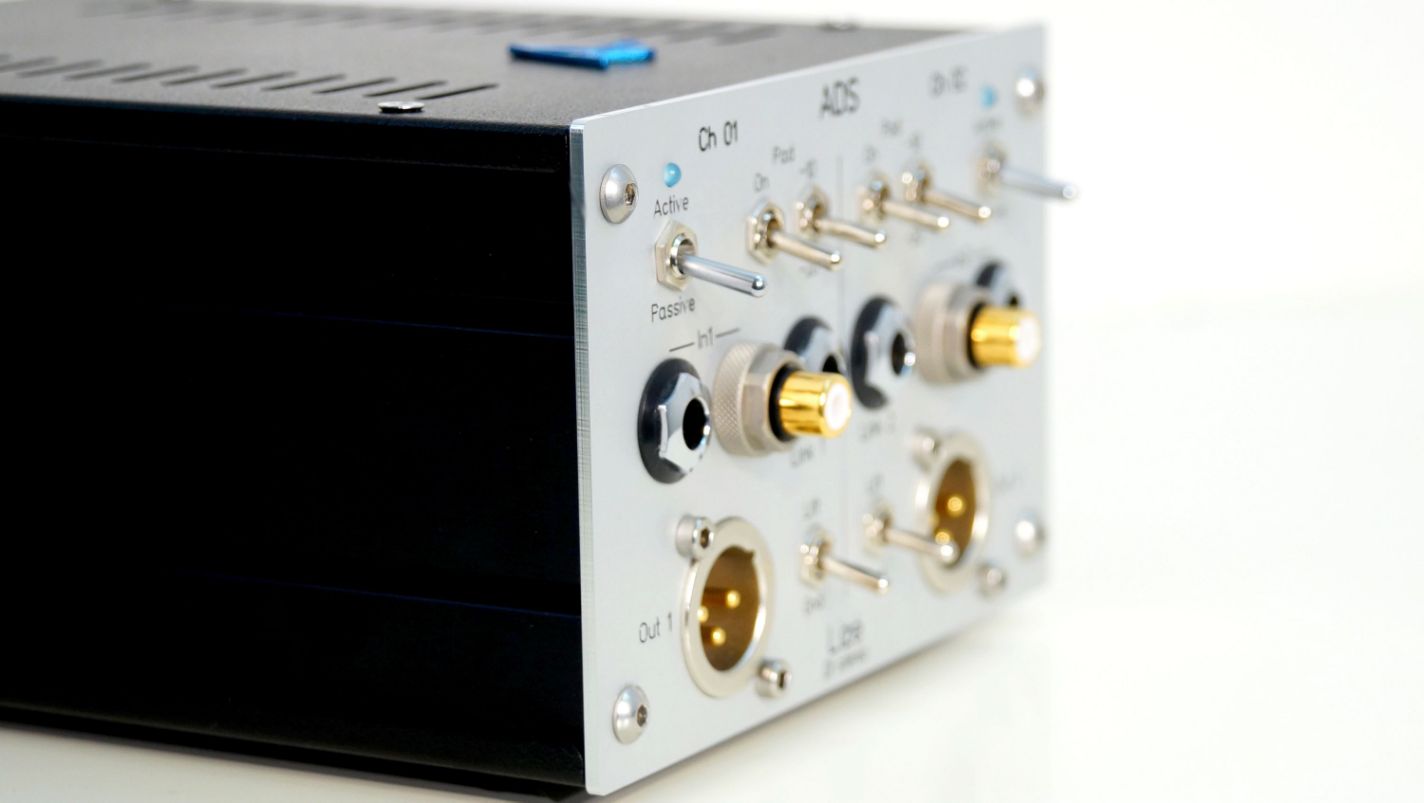

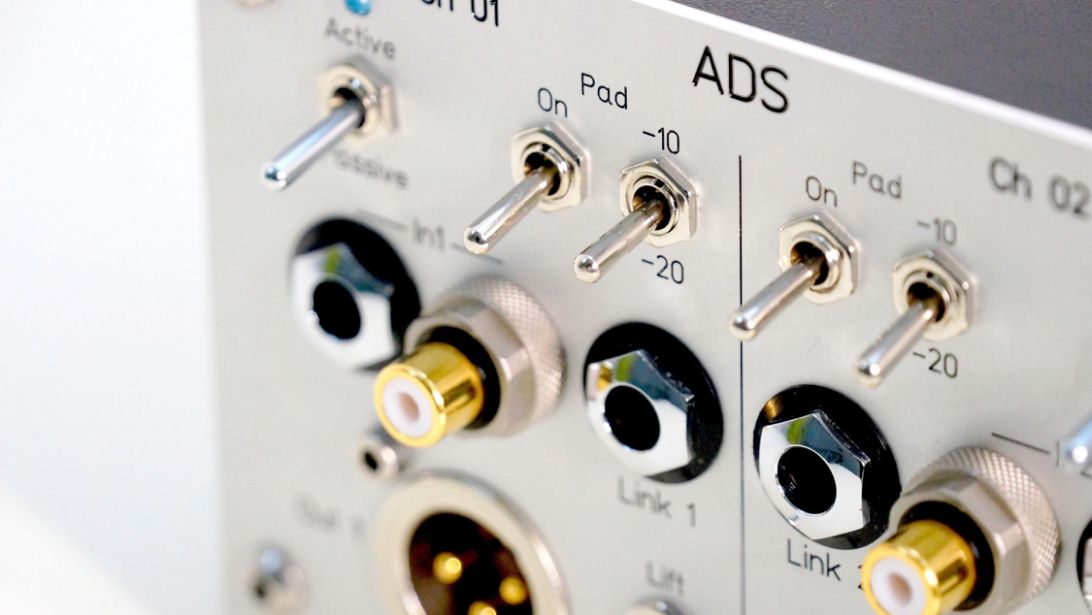

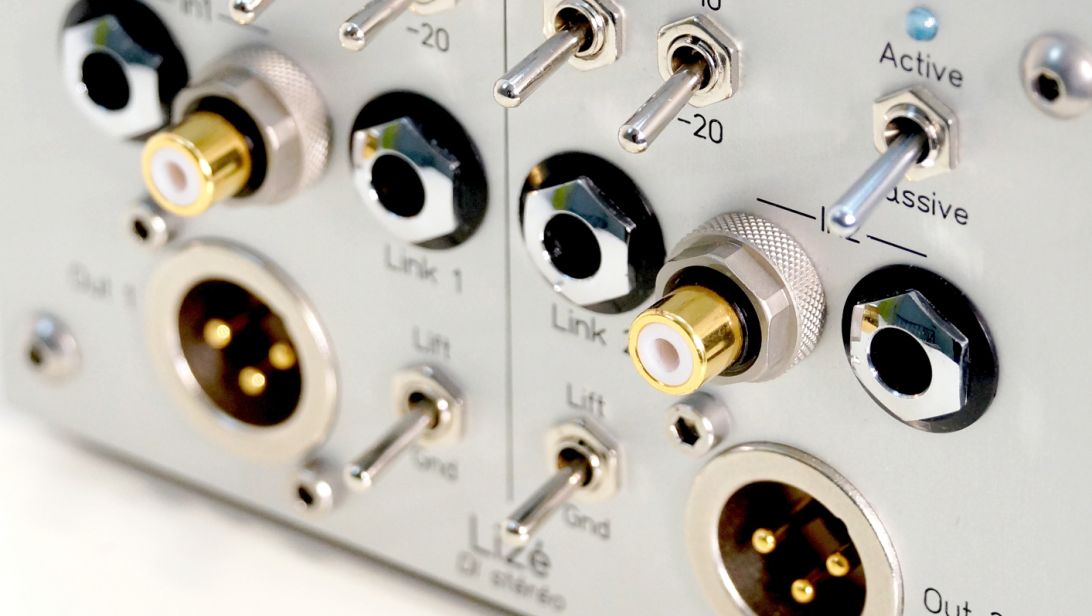

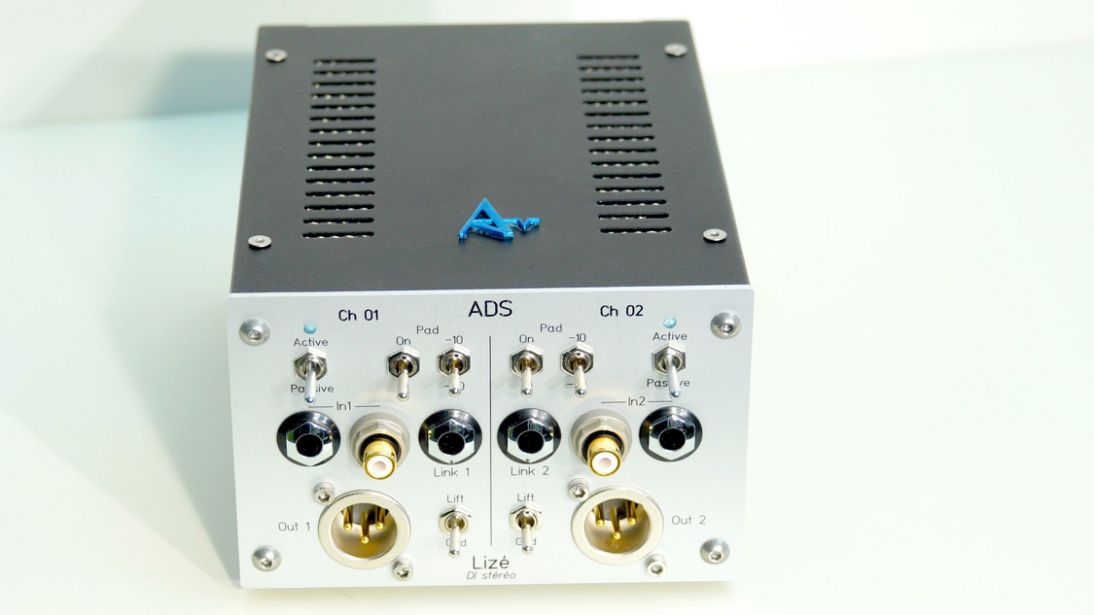

LIZE

Lizé is a high-end passive and active stereo audio interface for adapting instrument-level signals to microphone level, guaranteeing finesse, precision and signal dynamics.

Lizé has been designed and engineered to preserve the integrity and sonic fidelity of instruments such as guitars, basses, keyboards and samplers.



Lizé is made up of four independent, isolated circuits assembled by hand using the "in the air" cabling principle, ensuring a safer, more reliable and loss-free connection.

All Lizé components, such as transformers, connectors and passive electronics, have been selected for optimum audio quality to satisfy the needs of recording studios.

Technical data LIZE

Passive and active stereo audio interface
2 passive circuit channels
2 HI-Z 6.35 jack instrument inputs
2 HI-Z RCA instrument inputs
2 low-impedance XLR balanced outputs
2 link output jack 6.35
2 passive circuit channels with Carnhill transformer
Input impedance: 150K ohms
Output impedance: 250 Ohms
Bandwidth: 20Hz-70KHz
Attenuator: -10dB / -20dB
Ground lift
2 channels discrete active circuit
48-volt phantom powering per channel
48v blue LED presence indicator
Input impedance: 600K ohms
Output impedance: Electronic audio components
Connectors: Tellurium copper, gold-plated
Dimensions 80X124X170 mm
Steel chassis
Anodized aluminum front panel
Weight: 1.4Kg
Hand-made in France

Recommended retail price

900 €
