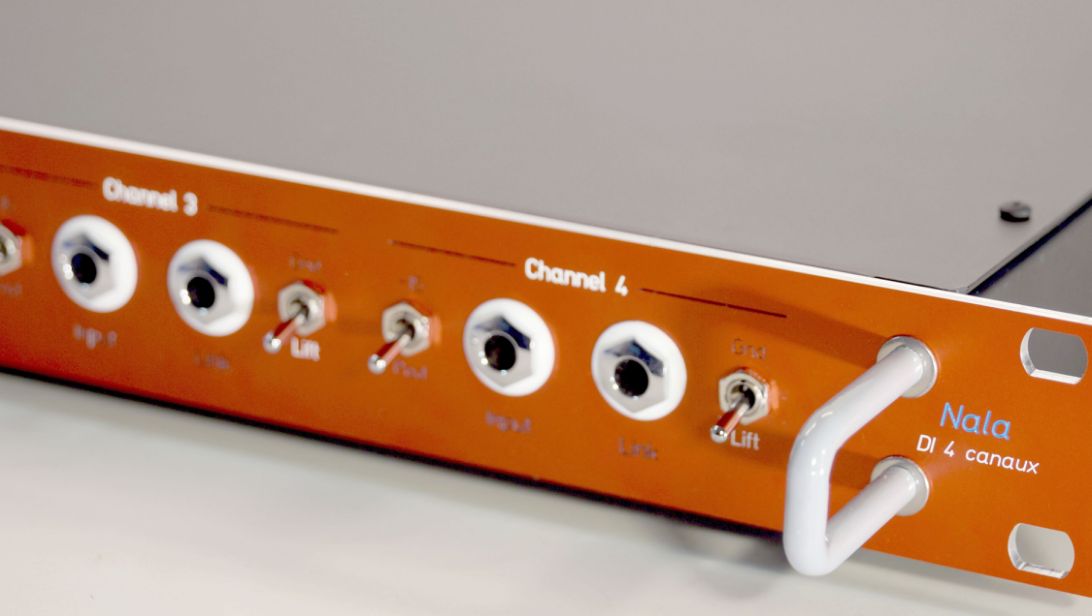

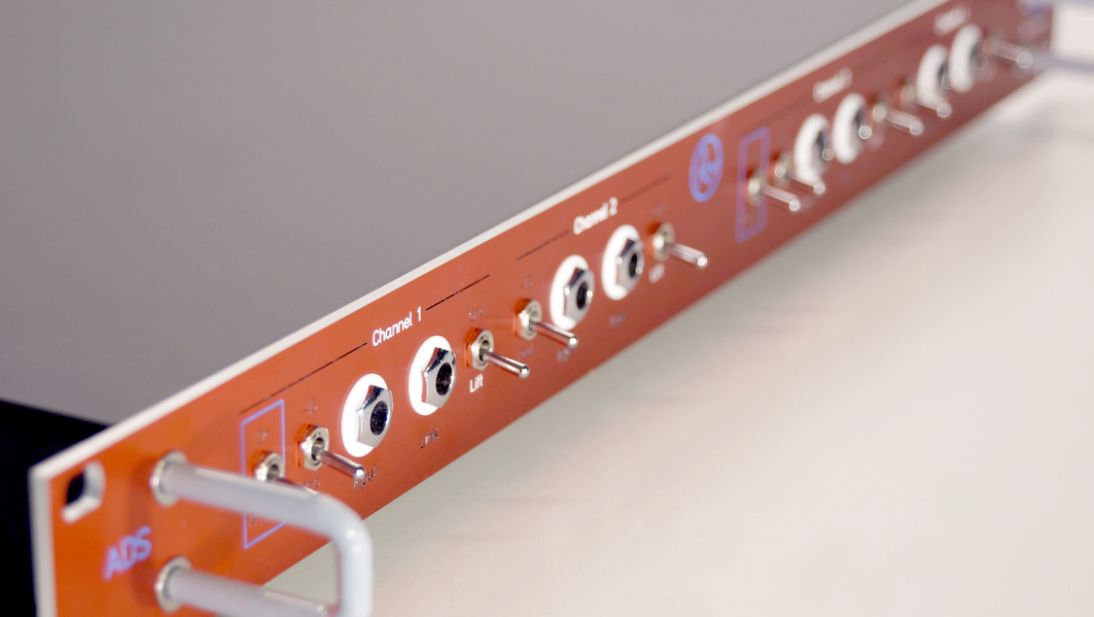

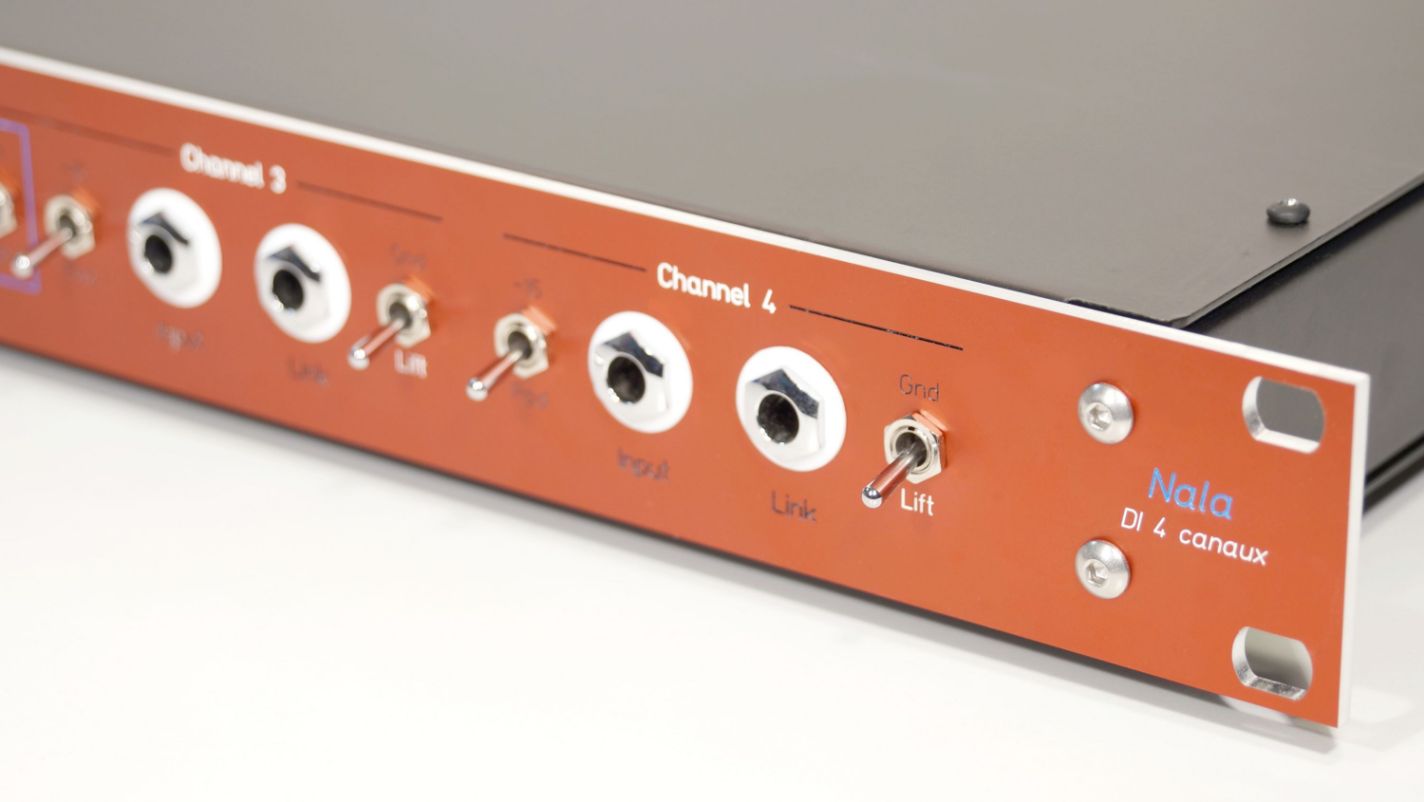

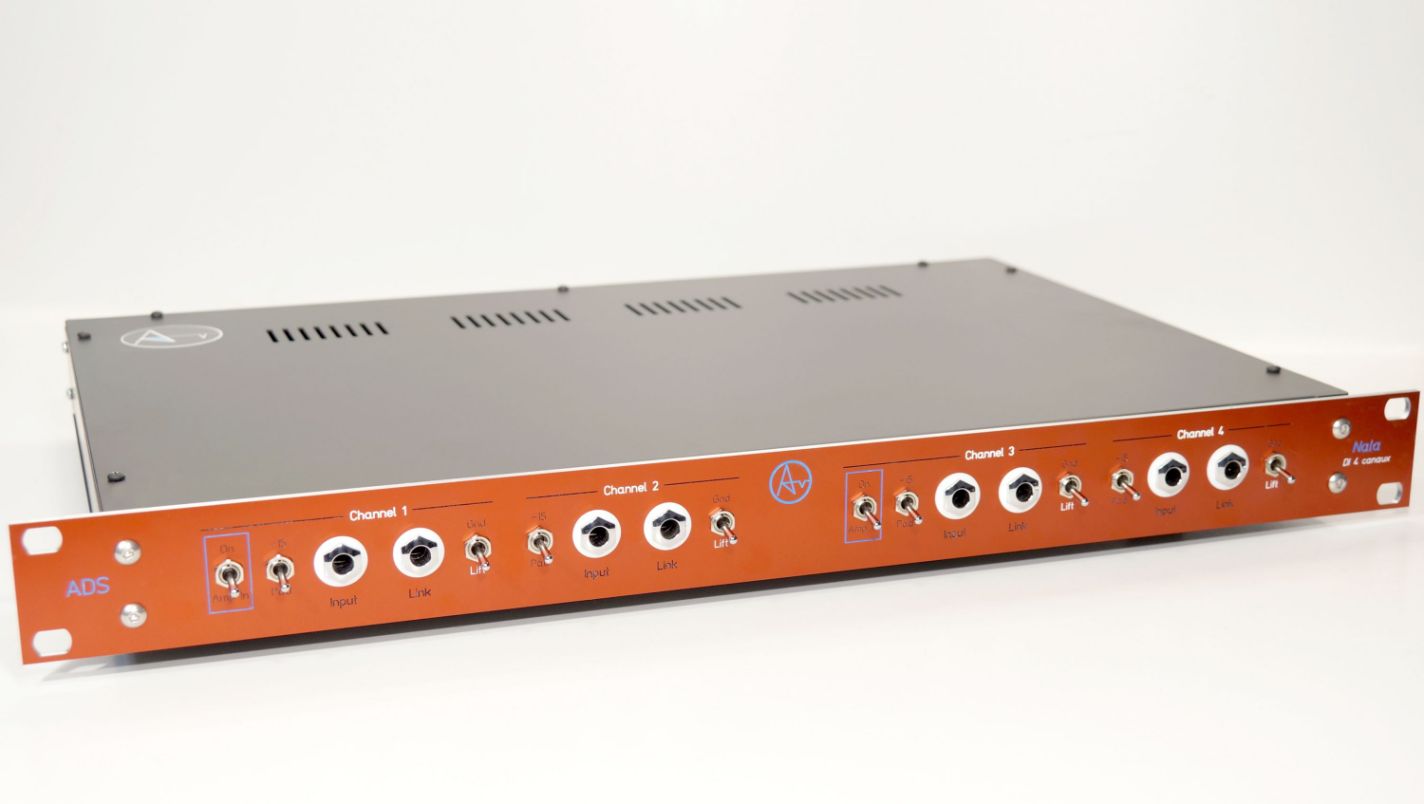

NALA is a passive DI with 4 independent channels for studio and stage.

Its electronics offer transparency and excellent resistance to saturation, with effective galvanic isolation reducing ground loops and ensuring a clean, interference-free signal.

Its shock-resistant, reinforced metal case is suitable for the rigors of the stage and intensive use.

The stand-alone version is equipped with non-slip feet for added stability and handles, or the rack-mount version for fixed installation or stage rack.

NALA can be used to connect instruments equipped with pickups or transducers (acoustic guitars, electric guitars/basses), instruments with line-level outputs (keyboards, synthesizers and other high-impedance instruments), and also on inputs 1 and 4, the "Amp In" mode allows you to connect the output of guitar amplifiers in parallel with the speakers, or a load box, to the balanced inputs of a mixing console or audio interface via XLR or Econ RJ45 connections.

NALA has also been designed to work in perfect synergy with ELIA series and Tube microphone preamplifiers, taking full advantage of their sonic characteristics to enhance the sound of your instruments.

NALA data sheet

4-channel passive direct box
6.35mm unbalanced and link inputs

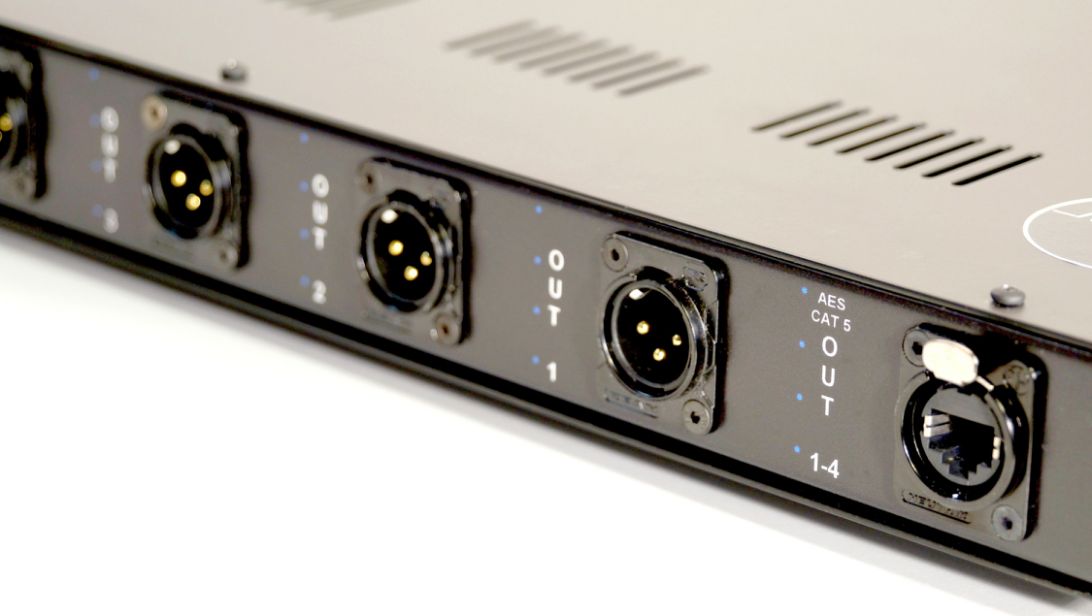

Balanced XLR and Audio Over Cat RJ45 outputs
Input attenuator (Pad) 0dB/15dB
Ground/Lift selector
Amp in" selector (use only in parallel with a loudspeaker or
with speaker or load box)
Frequency response: 15-30 KHz
Input impedance: 53 Kohms
Output impedance: 600 Ohms
Ratio: 10:1
Housing: steel
Dimensions: 430 x 290 x 40mm
weight: 3.7Kg
Hand-made in France

Recommended retail price

649 €
